Features：
1. Support 1~64 scan, compatible with indoor and outdoor full color and single color module.
2. Control range: 1.3 million pixels, the widest 3840 (need video processor), and the highest 2048.
3. One DVI video input.
4. Supports up to 65536 grayscale level.
5. Support cascading with serial port to configure multiple sending cards, support sending card cascade to control screen in high resolution.
Connection Diagram：
Upgraded programs by laptops, mobile phones with Wi-Fi connection or use U-disk for upgrade programs.

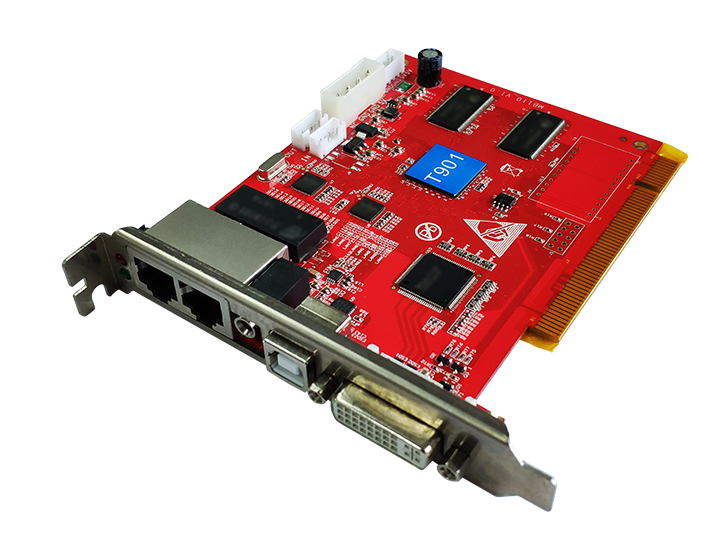

| Picture |  |
 |
| Model | HD-T901 | HD-T90B |
| Control range |
1.3 million pixels (1280*1024@60Hz) Note：width more than1920 pixels, it need used with video processor. |
Direct connect with computer can control 1.3 million pixels (1920*1200@60Hz)，Widest 3840, Highest 2048 Note：width more than1920 pixels, it need used with video processor. |
| Program update | DVI synchronous display | DVI synchronous display |
| Audio output | Standard 3.5mm interface dual channel stereo input | Standard 3.5mm interface dual channel stereo input |
| Audio input | Need to cooperate with multi-function card to achieve audio output | Need to cooperate with multi-function card to achieve audio output |
| Communication type | USB-B type interface, Gigabit network port | USB-B type interface, Gigabit network port |
| interface | Input: 5V power supply terminal, DVIx1, USB 2.0 x1, PCI finger x1, serial cascade x1, Audio x1 Output: 1000M RJ45 x2, serial for cascadingx1 |
Input: AC 110~220V 50/60Hz power terminal *1, DVI *1, USB 2.0 *1 Output: 1000M RJ45 *4, dual channel Audio* 1 |
| Operating Voltage | 4.5V~5.5V，Input voltage AC 110~220V | 4.5V~5.5V，Input voltage AC 110~220V |
| Debugging software | HDSet | HDSet |
| Player software | HD Show | HD Show（not necessary） |
| Power | 5W | 10W |
