Features：
1. High performance. RK3288 chip adopts quad-core ARM Cortex-A17 architecture, the main frequency can be as high as 1.8GHz, compared with common single-core, dual-core and quad-core solutions on the market. A qualitative leap in performance, capable of playing various formats of high-definition video screens, and capable of handling complex interactive operations
2. High stability. The RK3288 Android integrated board adds its own unique technology to the hardware and software to ensure the stability of the product, so that the final product can be unattended for 7*24 hours.
3. High integration. integrates functions such as Ethernet, Wi-Fi, power amplifier, TF expansion card, USB expansion port, HDMI, etc., which greatly simplifies the installation of the whole machine.
4. High definition. Supports LCD display screens with HDMI interface, and supports cropping screens of various sizes and resolutions.

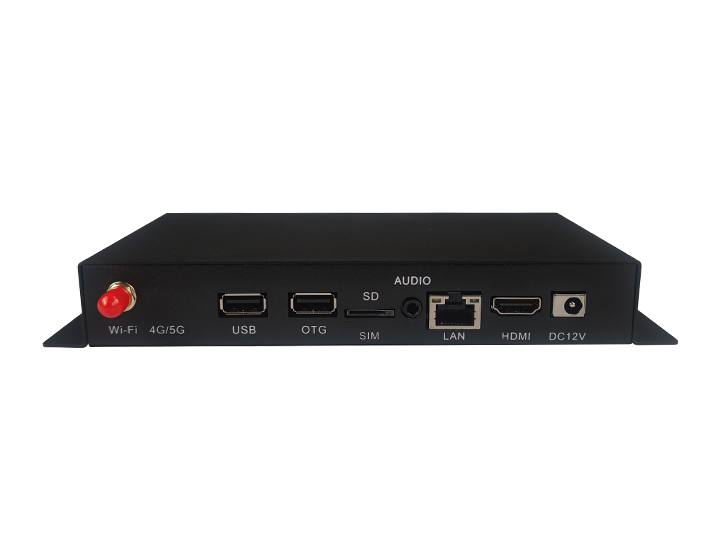

Product Diagram：
Size：
| Picture | |||
| MODEL | HD-3288B | HD-3566B | HD-3568B |
| CPU | RK3288, Quad-core, the highest frequency 1.8GHz | RK3566, Quad-core, the highest frequency 1.8GHz | RK3568, Quad-core, the highest frequency 2.0GHz |
| GPU |
Mail-T764 GPU MP4 Quad-core GPU Supports OpenGL ES1.1/2.0,OpenVG1.1,OpenCL |
Mali-G52 GPU supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1 | Mali-G52 GPU supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1 |
| RAM | DDR3, 2GB (Support optional 4GB) | DDR3, Standard 2GB | DDR3, Standard 2GB(optional 4GB) |
| Built-in storage capacity |
eMMC 16GB (Optional 32/ 64 GB) TF Card expansion (can be used to expand SSD) |
eMMC 16GB ( 32 GB) TF Card expansion (can be used to expand SSD) |
eMMC 16GB (optional 32 GB) TF Card expansion (can be used to expand SSD) |
| Connection |
Support RJ45 100M Ethernet port and Ethernet. Support 2.4G Wi-Fi and Wi-Fi 802.11b / g / n protocol. |
Support RJ45 100M Ethernet port and Ethernet. Equipped with 2.4GHz Wi-Fi (support optional 5GHz) and Wi-Fi 802.11b / g / n protocol. |
Support RJ45 100M Ethernet port and Ethernet. Equipped with 2.4GHz Wi-Fi (support optional 5GHz) and Wi-Fi 802.11b / g / n protocol. |
