HD-3288S/3566S/3568S/3568V/3399F

 Features:



      ● High performance. The RK3288 chip uses a quad-core ARM Cortex-A17 architecture, the main frequency can be as high as 1.8GHz, compared with the single-core, dual-core, and quad-core solutions common in the market. It has a qualitative leap in performance, can play high-definition video in various formats, and can handle complex interactive operations.

      ● High stability. RK3288 Android integrated board, in hardware and software, add your own unique technology to ensure the stability of the product, can make the final product 7 * 24 hours unattended.


      ● High integration. RK3288 Android integrated board integrates Ethernet, EDP, Wi-Fi, power amplifier, TF expansion card, USB expansion port, IR remote control function, HDMI, LVDS, backlight control, microphone and other functions, greatly simplifying the overall design.


      ● High scalability. SIX expansion USB ports (4 ports are PIN type, 2 ports are standard type), 2 serial ports + 1 expandable debug serial port, five IO expansion ports can expand more peripheral device.


      ● High definition. Supporting various LVDS / EDP / HDMI interfaces and cropping screens of various sizes and resolutions.


      ● Perfectly support multiple mainstream touch screen functions such as multi-point infrared touch, multi-point capacitive touch, multi-point nano film touch, multi-point acoustic wave touch, multi-point optical touch, etc.

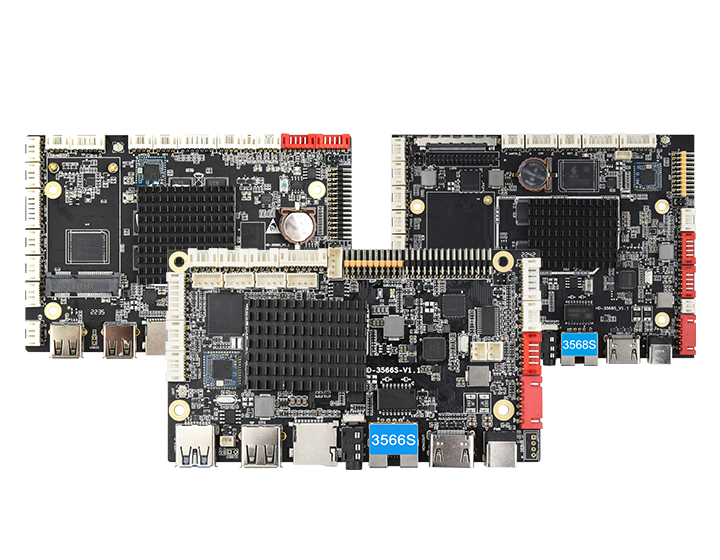

 Product Diagram:


 Size:



MODEL HD-3288S HD-3566S HD-3568S
CPU RK3288, Quad-core, the highest frequency 1.8GHz RK3566, quad-core, up to 1.8GHz RK3568, quad-core, up to 2.0GHz
GPU

Mail-T764 GPU MP4 Quad-core GPU

Supports OpenGL ES1.1/2.0,OpenVG1.1,OpenCL

Mali-G52 GPU supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1 Mali-G52 GPU supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1
Memory DDR3, 2GB by default Standard 2GB, optional 4GB Standard 2GB, optional 4GB
Built-in storage capacity

eMMC 16GB supports 32 / 64GB

TF Card expansion (can be used to expand SSD)

eMMC standard 16GB optional 32/64GB

TF Card expansion (can be used to expand SSD)

eMMC standard 16GB optional 32GB

TF Card expansion (can be used to expand SSD)

Network

Support RJ45 R / A 100M Ethernet, support Ethernet.

Supports 2.4G / 5G Wi-Fi and Wi-Fi 802.11b / g / n protocols.

Support Bluetooth 4.2, sending program by Bluetooth

Support RJ45 R/A 100M Ethernet, support Ethernet;

Support 2.4GHz Wi-Fi; support Wi-Fi 802.11b/g/n protocol;

Support Bluetooth 4.2.

Support RJ45 R/A 100M Ethernet, support Ethernet;

Support 2.4GHz Wi-Fi; support Wi-Fi 802.11b/g/n protocol;

Support Bluetooth 4.2.

Image rotation Support manual rotation of 0 degrees, 90 degrees, 180 degrees, 270 degrees Support 0 degree, 90 degree, 180 degree, 270 degree manual rotation; optional gravity sensor, support automatic rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual rotation; optional gravity sensor, support automatic rotation
