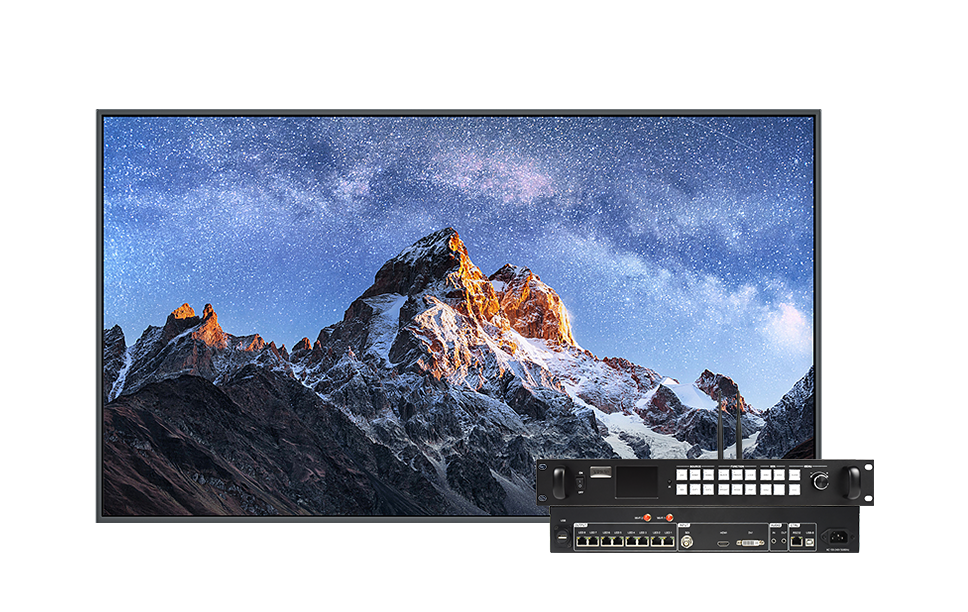

HD-VP830/VP820/VP630/VP620
  • Features
  • Specification
  • Download
Loading Capacity5.2 Million Pixels
Widest 8192 pixels

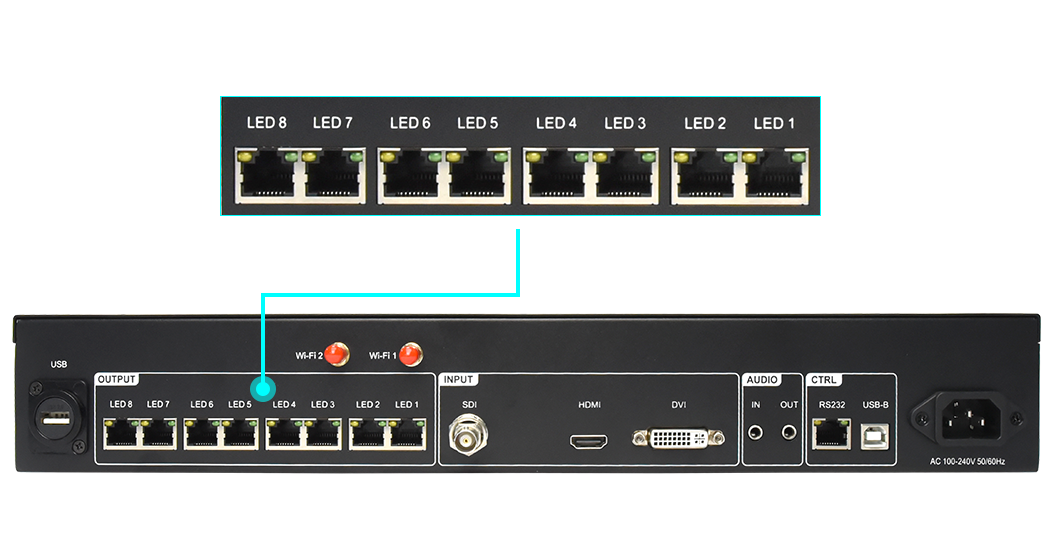

Eight dry Mbit/s network port outputs
1 Road interface with 650,000 pixels

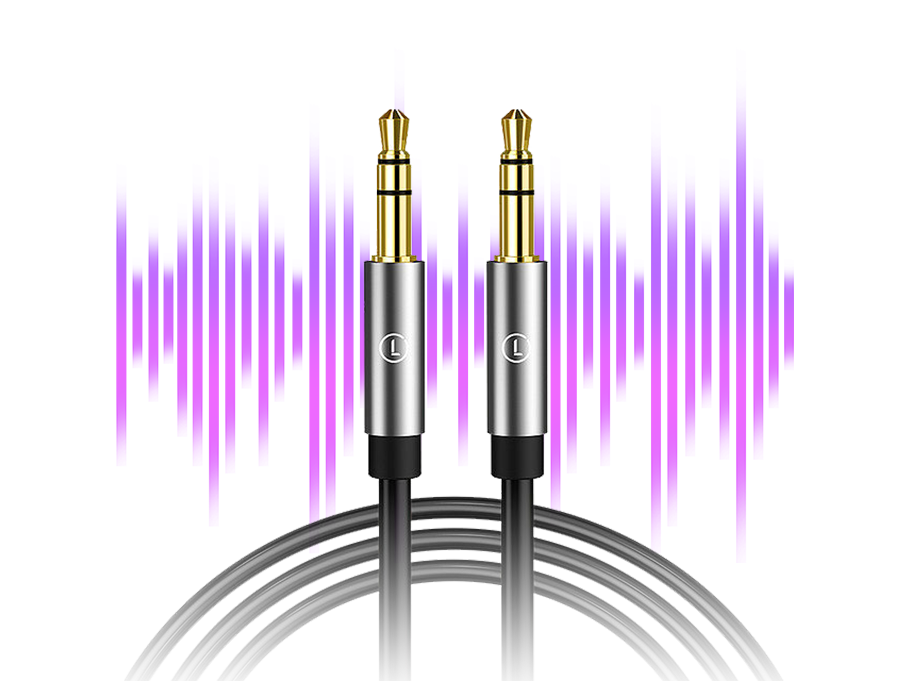

Support audio output
TRS 3.5mm standard dual channel interface input/output
Multiple signal input interface
HDMI input *1, SDI input *1, DVI input *1
Support three screen display
The area size and position can be set arbitrarily
Support U disk playback
Video formats :mp4, avi, mpg, mov, vob and mvb Image formats :jpg, jpge, png and bmp
Supports infrared remote control
Infrared remote control program control, signal switching brightness Settings, etc

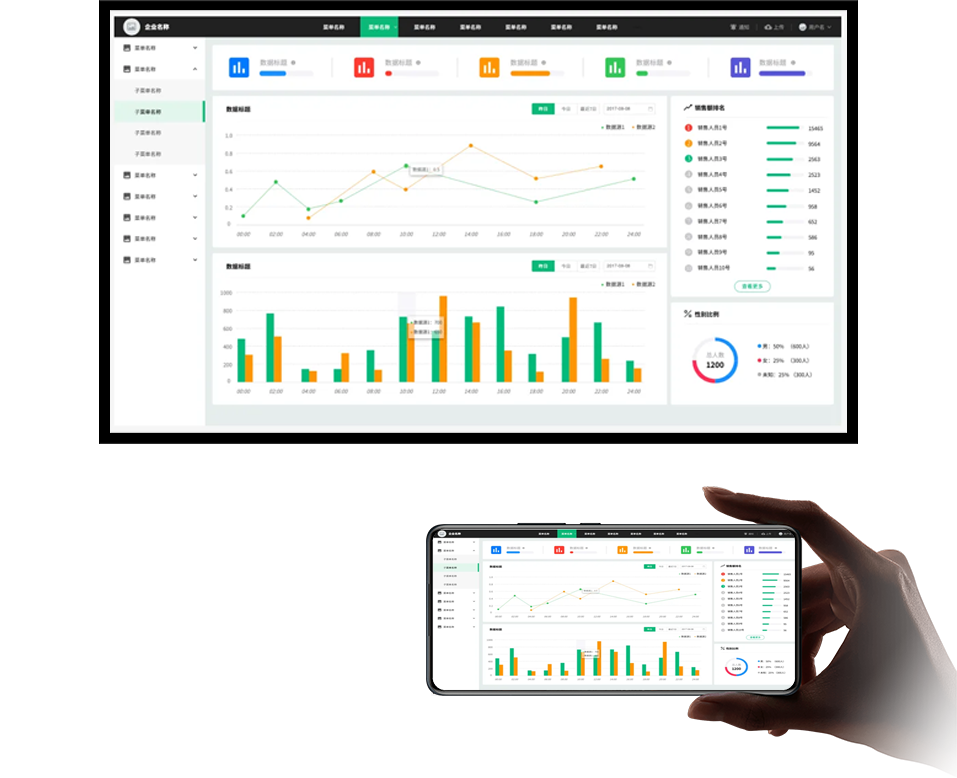

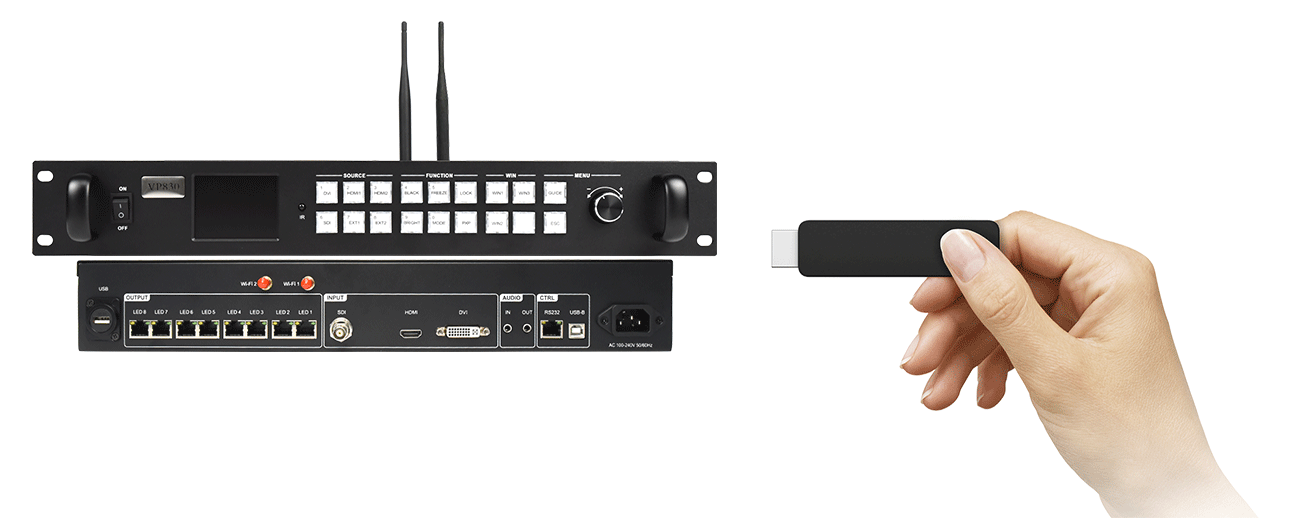

Mobile/tablet wireless projection screen
Conference sharing, teaching demonstration, games and entertainment..... Supports multiple screen projection protocols such as DLAN, Miracast, and AirPlay
Standard Wi-Fi, wireless control of the phone
Signal switching, partition display, area position Key black screen, volume adjustment, brightness Settings, etc
Picture second switch
Pure FPGA scheme, excellent image processing capability multi-channel signal seamless switching, no black screen
Model HD-VP830 HD-VP630 HD-VP820 HD-VP620
Loading capacity 5.2 million pixels 3.9million pixels 5.2 million pixels 3.9million pixels
Maximum width 8,192 pixels 8,192 pixels 8,000 pixels 8,000 pixels
Output 8 6 8 6
Signal input HDMI*2、DVI、SDI HDMI*2、DVI、SDI HDMI*2、DVI、DP、VGA、EXT HDMI*2、DVI、DP、VGA、EXT
Layers 3 3 2 2
Audio ✔ ✔ ✔ ✔
Wi-Fi ✔ ✔ ✔ ✔
