| Model | HD-MS2000 | HD-MS4000 | HD-MS4000Pro | HD-MS8000 |
| Operation interface | HDMI2.0x1、DP1.4x1 | HDMI2.0x1、DP1.4x1 | HDMI2.0x1、DP1.4x1 | HDMI2.0x1、DP1.4x1 |
| Processor | Intel i5-11400@2.60GHz | Intel 10700@2.90GHz | Intel 10700@2.90GHz | Intel i7-10700@2.90GHz |
| System memory | 16G | 32G | 32G | 64G |
| Extended storage | 512G(Scalable) | 512G(Scalable) | 512G(Scalable) | 1T(Scalable) |
| Graphics card | NVIDIA T1000 | NVIDIA RTXA4000 | NVIDIA RTXA4000 | NVIDIA RTX A4000 x2 |
| Video interface | Mini DP1.2 x 4 | DP1.4 x 4 | DP1.4 x 4 | DP1.4x8 |
| Single channel maximum output | 4096 x 2160@60Hz | 4096 x 2160@60Hz | 4096 x 2160@60Hz | 4096*2160@60Hz |

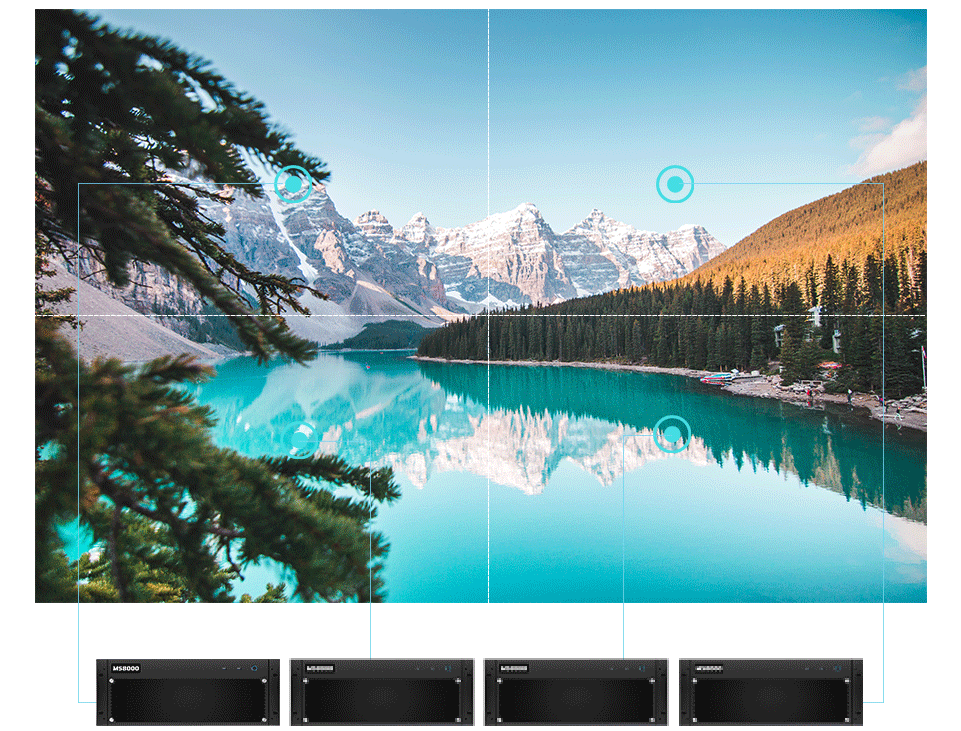

| The maximum output of the whole machine | 8192 x 2160@60Hz | 8192 x 4320@60Hz | 8192 x 4320@60Hz | 16384x4320@60Hz |
| Audio | Audio input and multi-channel output | Audio input and multi-channel output | Audio input and multi-channel output | Audio input and multi-channel output |
| Network | 2.5G | 2.5G | 2.5G | 2.5G |

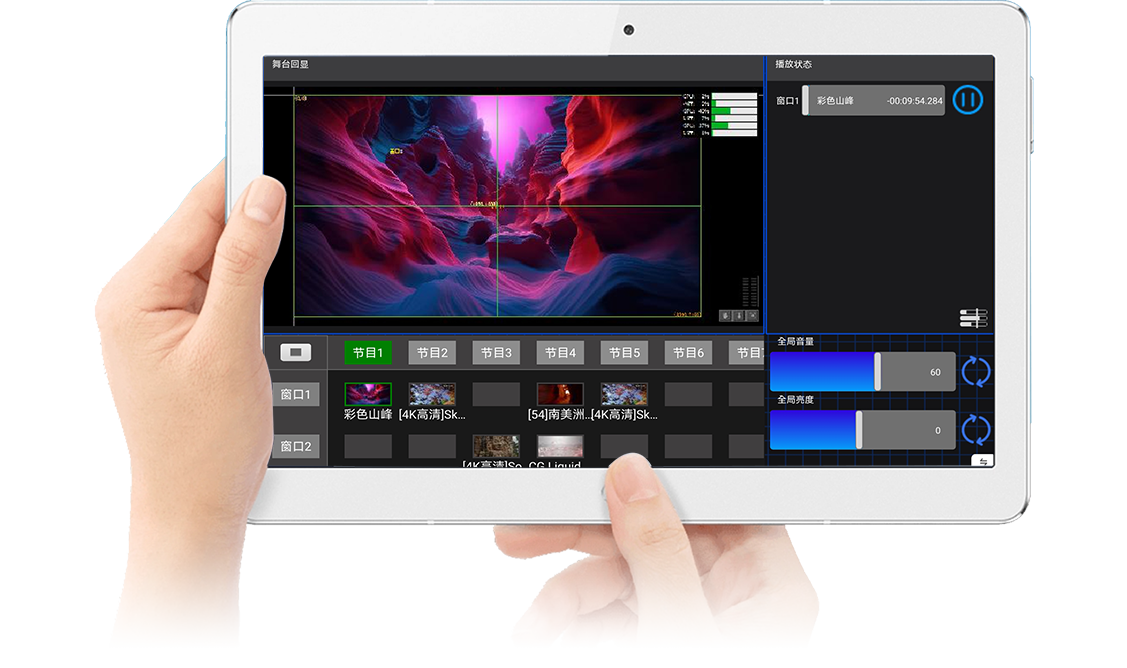

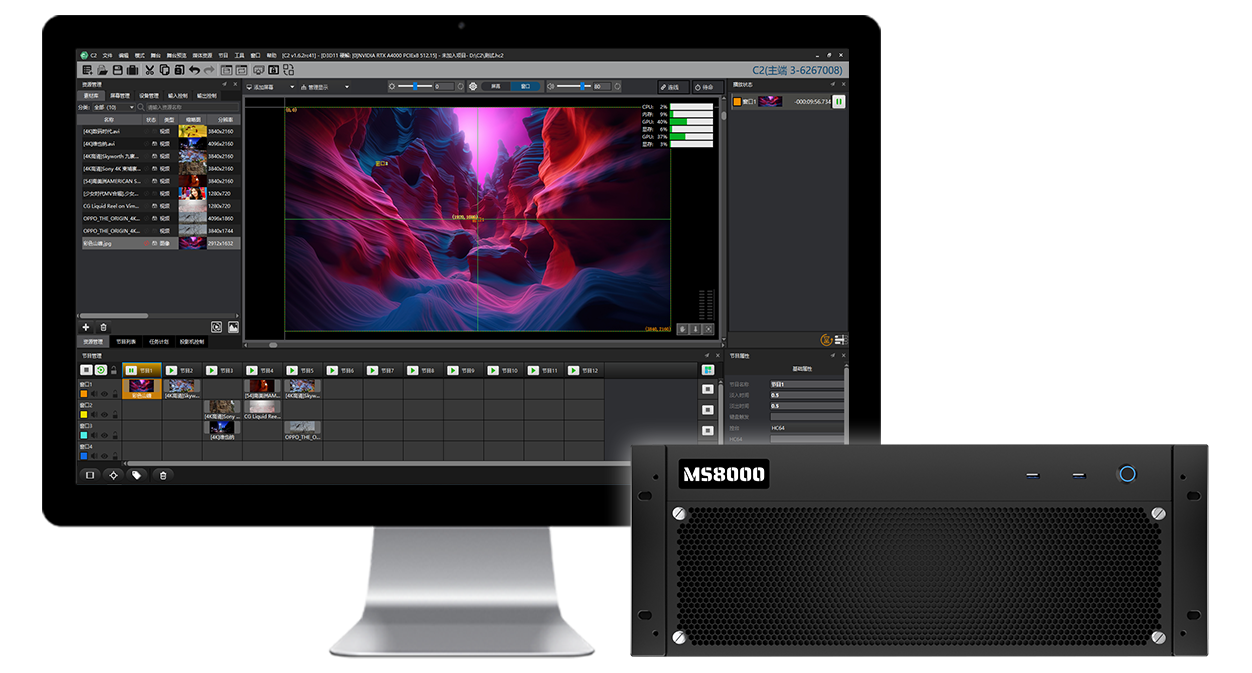

| Broadcast control software | HD Show C2 | HD Show C2 | HD Show C2 | HD Show C2 |
| Heat sink | Silent fan | Silent fan | Silent fan | Silent fan |
| Chassis | 4U | 4U | 4U | 4U |
| Wire | Mini DP（4K）transfer to DP x 4 | DP（4K）transfer to HDMI x 4 | DP（4K）transfer to HDMI x 4 | DP（4K））transfer to HDMI x 8 |
| Operating system | Windows 10 | Windows 10 | Windows 10 | Windows 10 |
| Operating temperature | 0-45℃ | 0-45℃ | 0-45℃ | 0-45℃ |
| Working humidity | 10%-90% non-condensing | 10%-90% non-condensing | 10%-90% non-condensing | 10%-90% non-condensing |
| Input voltage | 100-240V AC~50/60Hz | 100-240V AC~50/60Hz | 100-240V AC~50/60Hz | 100-240V AC~50/60Hz |
| Power | 480W | 480W | 480W | 480W |
| Equipment size（DxWxH） | 483W*450D*178H（mm） | 483W*450D*178H（mm） | 483W*450D*178H（mm） | 483W*450D*178H（mm） |
| Equipment net weight | 12.5kg | 12.5kg | 12.5kg | 14.5kg |
