Shenzhen Huidu Technology Co., Ltd.—HD-R708/R712/R716/R732

HD-R708/R712/R716/R732

Feature 1

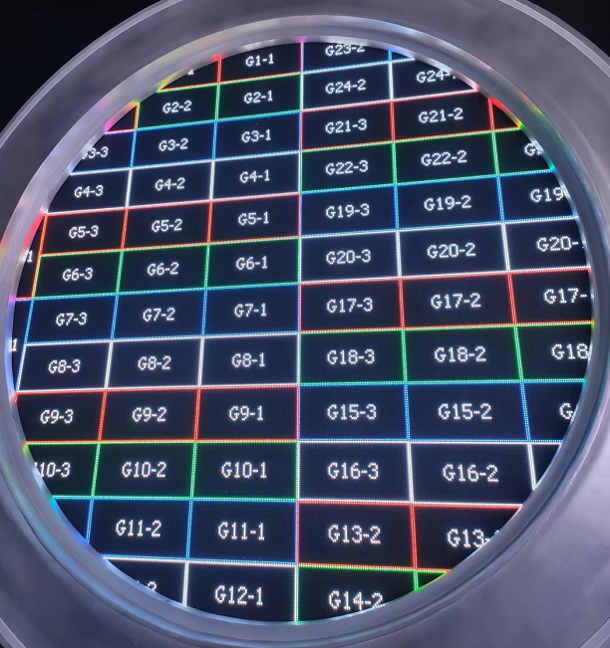

Pioneer setting method of separate panel RGB data group order, visualized connection

Feature 2

Supports module misalignment installation and arbitrary debugging

Feature 3

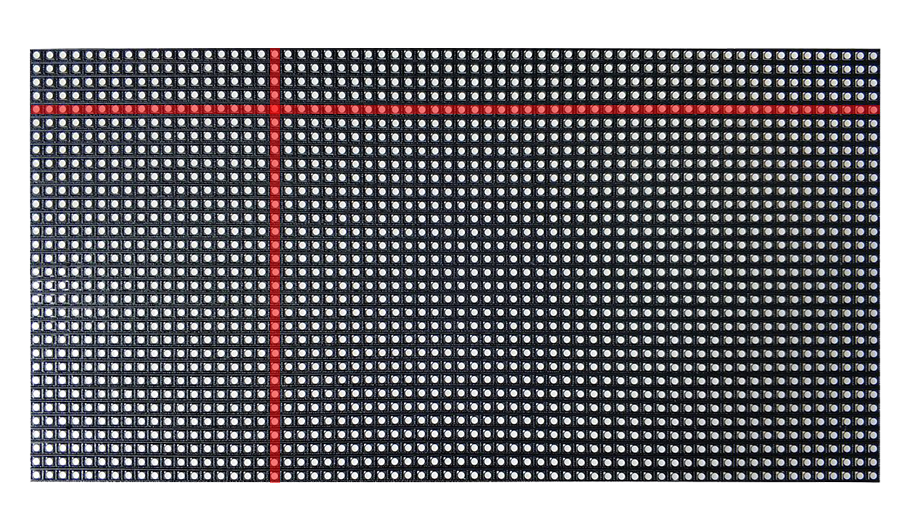

Supports row and column adjustion

Feature 4

Supports static up to 1/128 scan modules

Model	R708	R712	R716	R732
Conventional chipLoading capacity	128*512	128*1024	160*1024	128*1024
PWM chipLoading capacity	256*512	256*1024	320*1024	256*1024
HUB connector	HUB75E	HUB75E	HUB75E	HUB320
Data group	16	24	32	32
Scan	Static to 1/128	Static to 1/128	Static to 1/128	Static to 1/128
Rotate	√	√	√	√
Mapping	√	√	√	√
